PAXTON - Electronic Lifting Desk

With our PAXTON Small and Small-Wide models you have the option to upgrade the fixed desk to our height adjustable electric desk allowing for a range of sitting and standing positions.

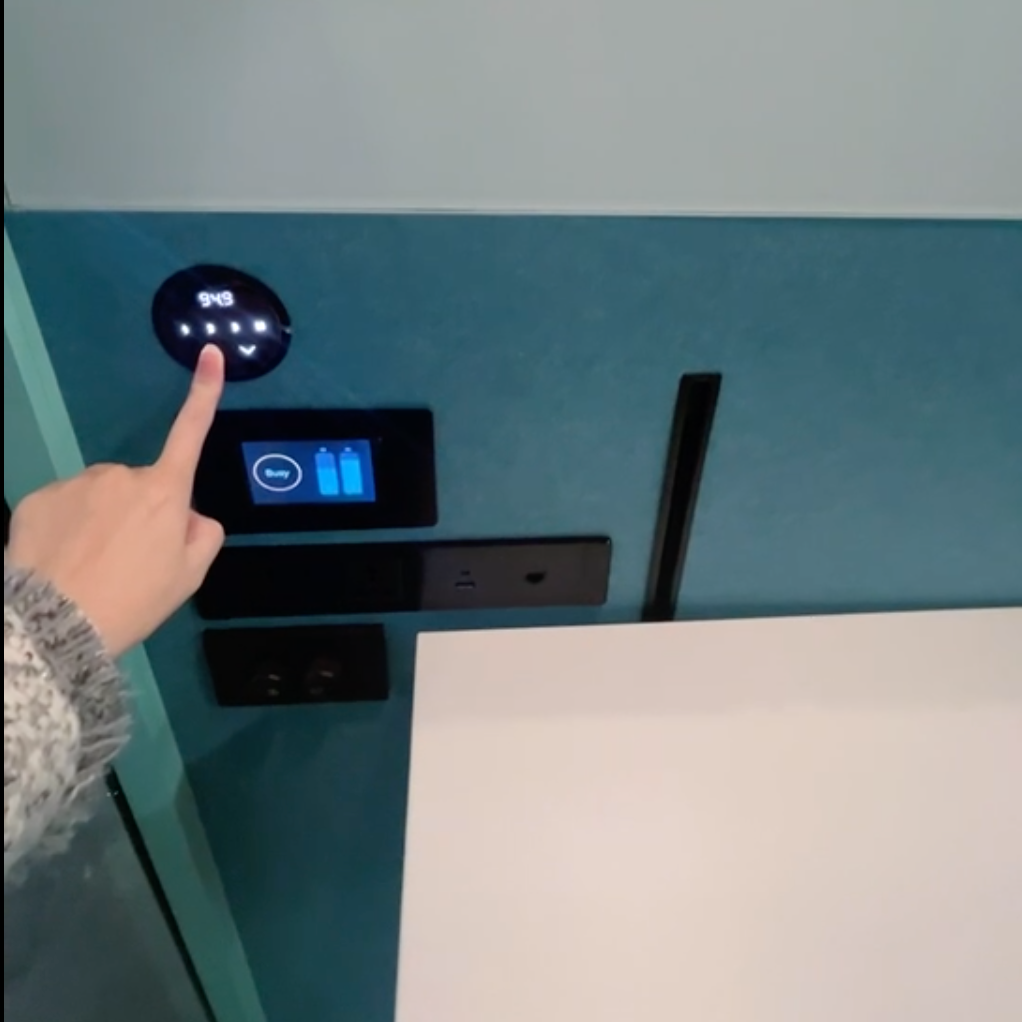

Digital controls for lifting desk with a hand pressing the button

With digital controls, you have the option of pre-set or fully adjustable height positions over a 500mm range.

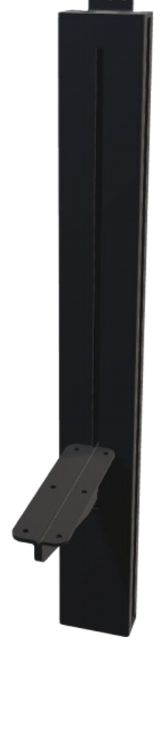

Black metal bracket on a white background

Features:

• Can be installed flush (embedded during manufacture) or proud to the wall (after market installation)

•  Comes with a simple table mounting bracket, no complex frame required

• The bracket is fixed at the top and bottom, suitable for most application scenarios

• Easy to install after market

• Slim profile with overall thickness of only 50mm (embedded installation is flush)

• Similar to a car window, it has a retraction function when encountering obstacles making for safer operations

Performance parameters:

• Maximum self-locking per column: 500N (Newtons)

• Operating noise level: ≤55 dB (measured 30cm away from the column)

• No-load & load stable speed: 30mm/s

• Overall dimensions: 879*102*50mm (see dimension drawings for details)

• Lift range: 500mm• Standard colour options: white (RAL9016), black (RAL9005), grey (RAL7045)

Adaptable desktop panels

Single column suitable for 400*400 desktop (PAXTON Small) / Two columns suitable for 400*600 desktop (PAXTON Small-Wide)

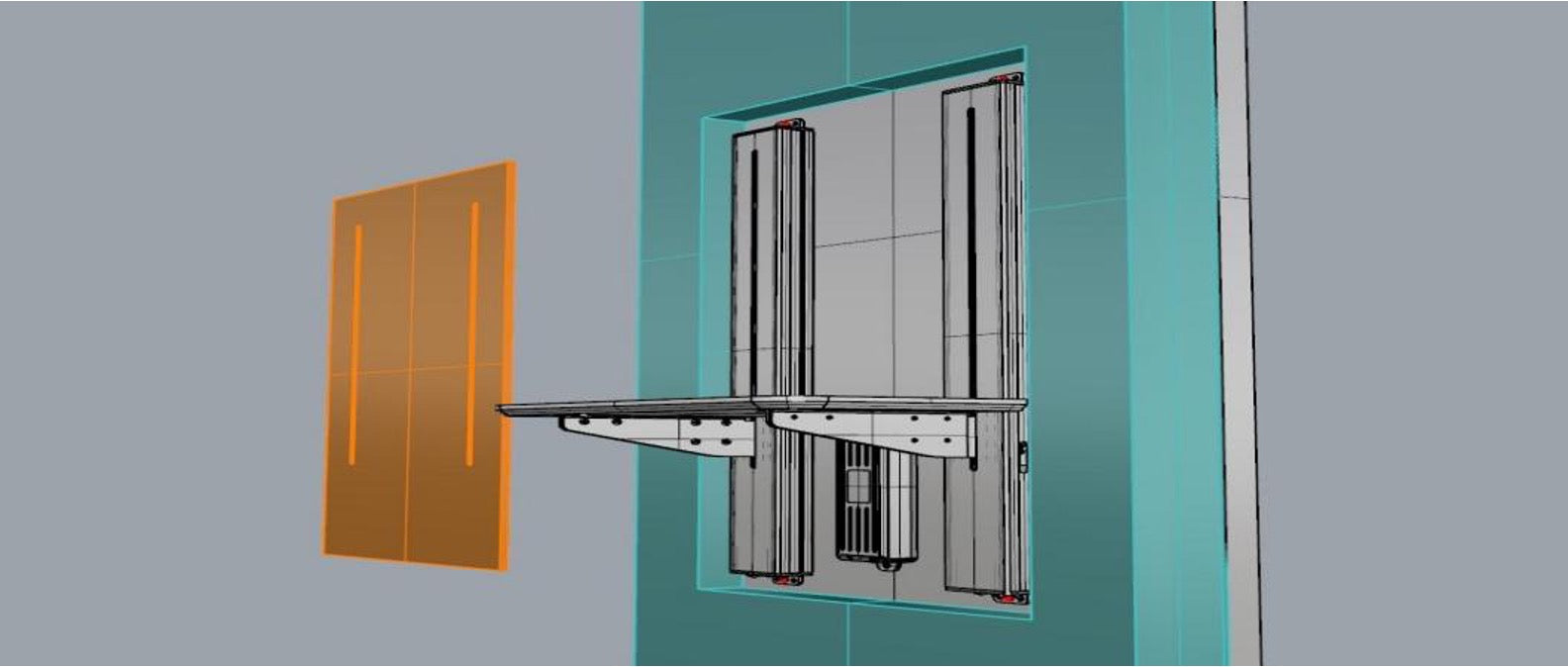

Below demonstrates the installation for the PAXTON Small-Wide with two columns installed side-by-side with the controlling module installed in between (linked to wall controller)

Schematic Profiles
